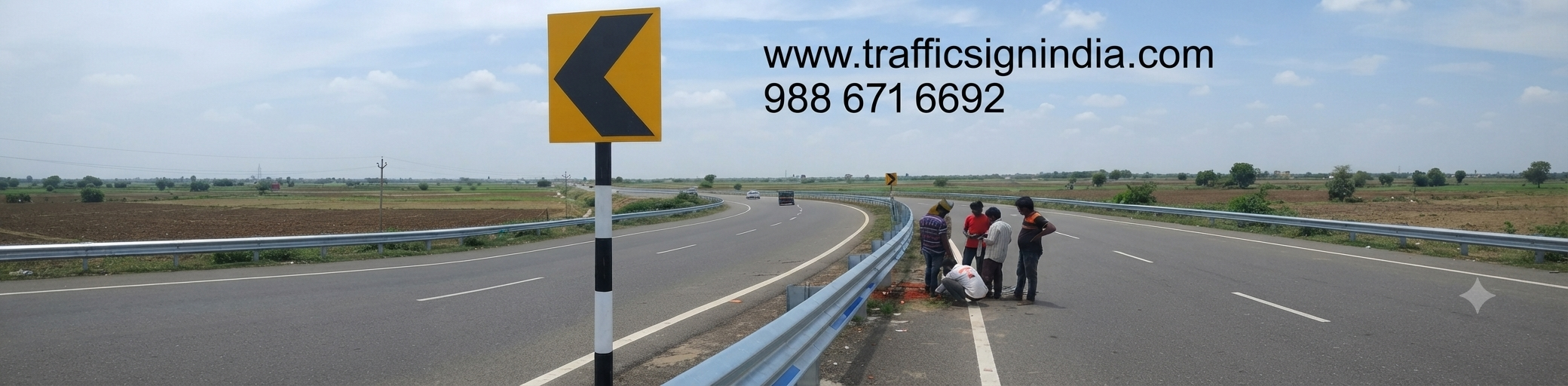

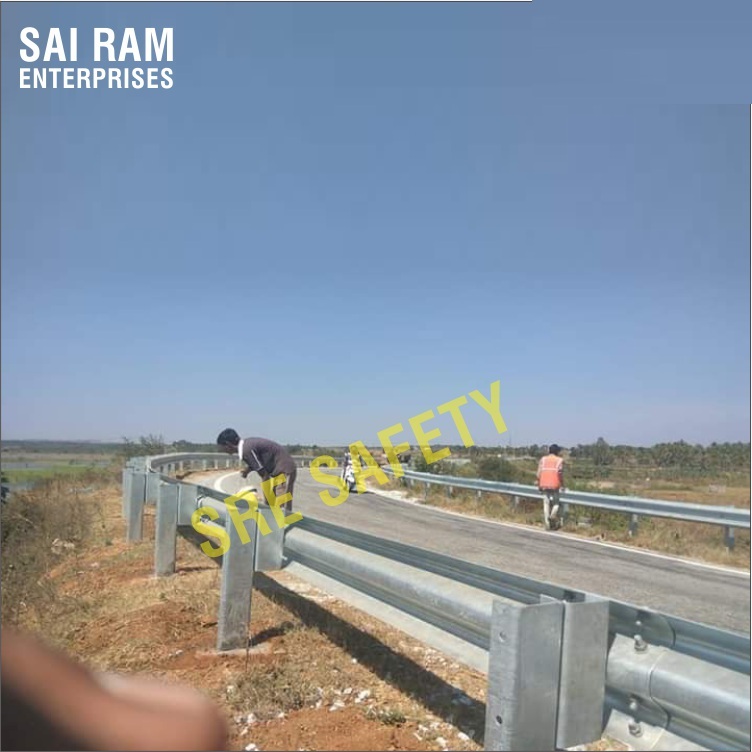

Metal beam crash barriers, commonly known as W-beam guardrails or corrugated highway barriers, are passive roadside safety restraint systems installed along highways, bridge approaches, flyovers, and elevated embankments. In India, their fabrication and installation are strictly regulated under MoRTH Section 811 and relevant Indian Roads Congress (IRC) safety codes.

Manufactured from high-strength structural steel and hot-dip galvanized with a minimum zinc coating of 550 g/m² (approx 78 to 85 microns), they protect motorists from lethal roadside hazards and steep drop-offs.

When an errant vehicle veers off the carriageway and collides with the barrier:

1. Kinetic Energy Dissipation: The corrugated W-profile beam and supporting steel post system deform in a controlled manner, absorbing substantial impact energy.
2. Vehicle Deceleration & Redirection: The continuous tension of the W-beam restrains the vehicle, redirecting it smoothly along the travel trajectory rather than allowing it to flip, roll, or rebound into incoming lanes.
3. Anti-Snagging Spacers: Spacer blocks mounted between posts and beams prevent vehicle wheels from snagging against the vertical posts.

• High Embankments: Roadway fills exceeding 3 meters in height to prevent vehicle rollovers.
• Bridge & Culvert Approaches: Transitioning vehicles safely between flexible road shoulders and rigid bridge parapets.
• Narrow Highway Medians: Preventing out-of-control vehicles from breaching opposing traffic lanes.
• Ghat Corridors & Mountain Passes: Cliff-side containment along sharp mountainous turns.
